   Re-motoring





My policy is, that all re-motoring kits shown on this website are available at
any time, I do stock all components * to make the re-motoring units to order.

* some special gearheadmotors require a minimum order of 50 from me at the
   plant so that I order only once or twice a year.


Stoner Creek Miniatures re-motoring pictures:



As you could see in the following sample pictures, the conversions are “drop in conversions” which do not require:

- change of axle or idler gears and therefore quartering of wheels
- extensive changes on chassis and superstructures
   (some minor filing and grinding may occur due to the tolerances of handmade brass engines)
- no specific tools like lathe, drill press or mill

Recommended tools are:

- assortment of small screwdrivers (normal, hex)
- soldering iron
- NWSL or similar puller for worms with 1.5 and 2mm inserts
- reamer 1.5 and 2 mm
- ACC and epoxy glue
- thin styrene shims 0.5 and 1mm. to insulate motor form frame.

All drives* result in smooth and silent running engines which are essential for DCC, sound and long term operations.

* On some dives with gear head motors a whining sound may occur in the beginning until the gears are broken in.



above:

HO WSM D&RGW L105 with an 8.5 watt 8500 rpm double shaft ball bearing micro-motor, a 30 minute conversion which
results in a very smooth and silent running engine (minimum speed 1.2 scale mph, top speed 65 scale mph)



above:

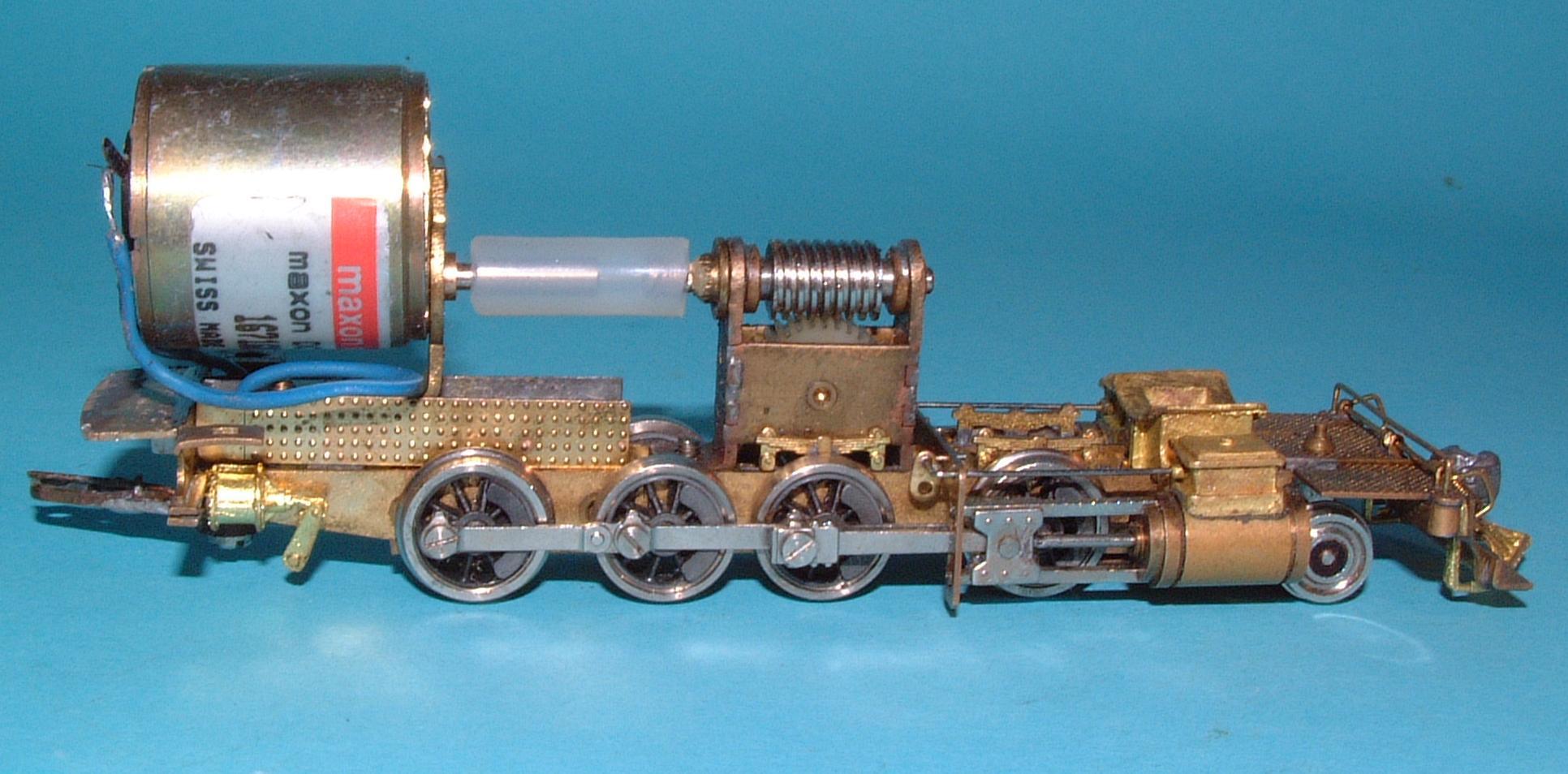

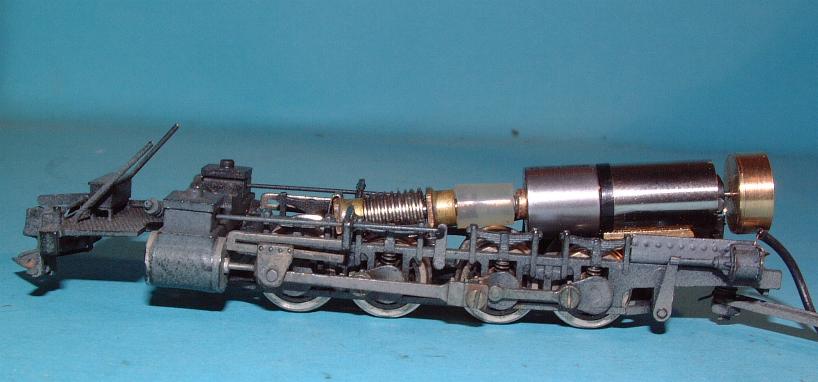

HOn3 Balboa D&RGW C 19 with an 1.5 watt4:1 ratio gear head micro-motor, also a 30 minute conversion which results in a very
smooth running engine (minimum speed 0.5 scale mph, top speed 28 scale mph)



above:

HOn3 Balboa / Custom Brass D&RGW C 19 with a 1.5 watt 4:1 ratio gear head motor, also a 30 minute conversion which results
in a very smooth and silent running engine (minimum speed 0.5 scale mph, top speed 32 scale mph)


above:

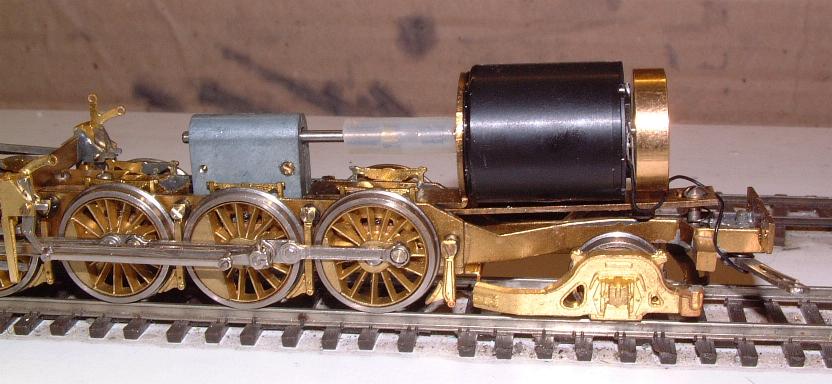

HO Key D&RGW M 64 with an 3.5 watt , double shaft ball bearing micro-motor, also a 30 minute conversion which results in a
very smooth an silent running engine (minimum speed 0.8 scale mph, top speed 72 scale mph)



above:

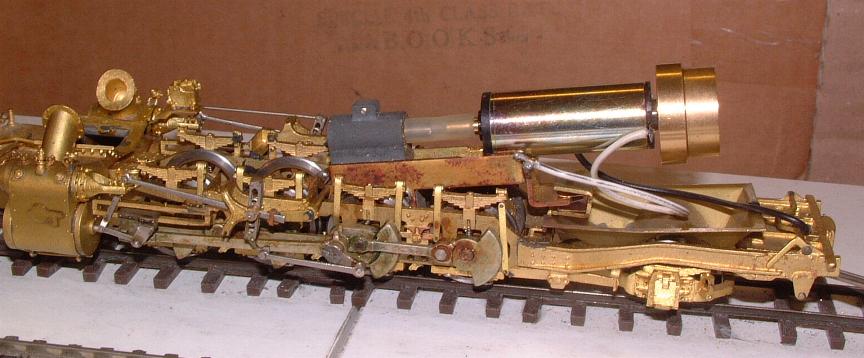

Sn3 Overland Models D&RGW K 36 with an2.8 watt ball bearing micro-motor, also a 30 minute conversion which results in a very
smooth and silent running engine (minimum speed 0.5 scale mph, top speed 38 scale mph)


above:

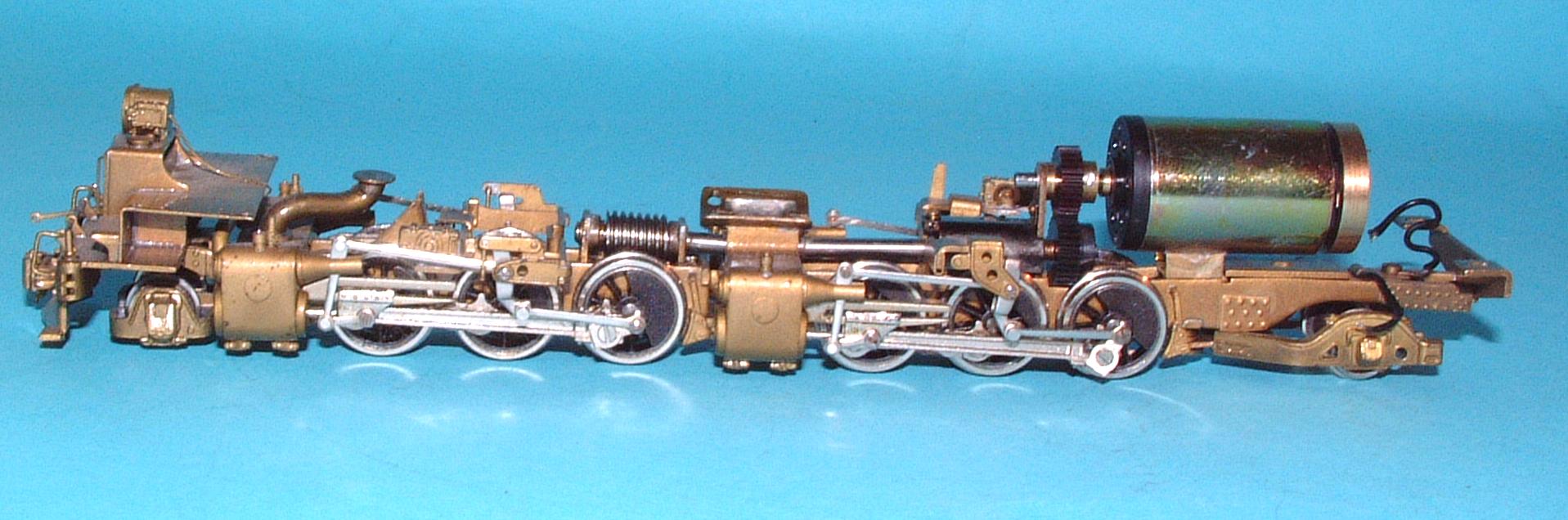

HOn3 PFM SV 2-6-6-2 (late run) with an 1.7 watt micro-motor, also a 30 minute conversion which results in a very smooth an
silent running engine (minimum speed 0.5 scale mph, top speed 32 scale mph)


above

WSM RGS /C&S  # 74 with an 1.5 watt micro-motor, also a 30 minute conversion which results in a very smooth an silent running
engine (minimum speed 0.5 scale mph, top speed 32 scale mph)



above

WSM RGS /C&S  # 74 with an 1.5 watt micro-motor, also a 30 minute conversion which results in a very smooth an silent running
engine (minimum speed 0.5 scale mph, top speed 32 scale mph)


above:

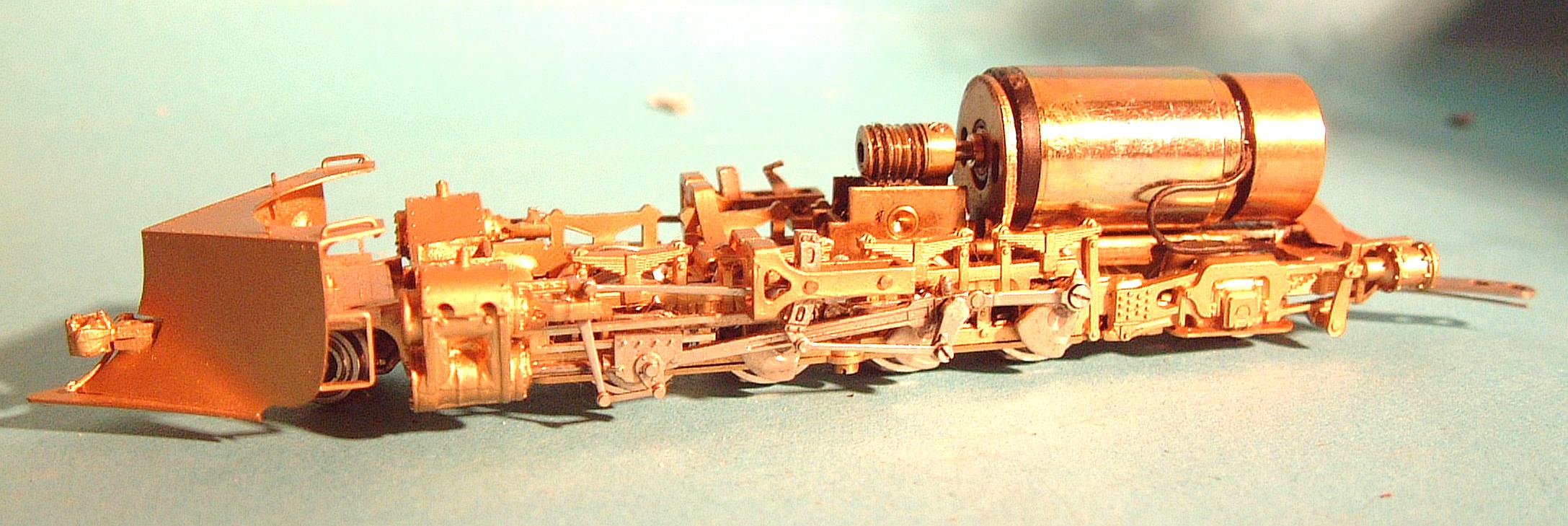

HOn3 WSM D&RGW K 27 with an 1.7 watt micro-motor, also a 30 minute conversion which results in a very smooth an silent
running engine (minimum speed 0.5 scale mph, top speed 34 scale mph)



above:

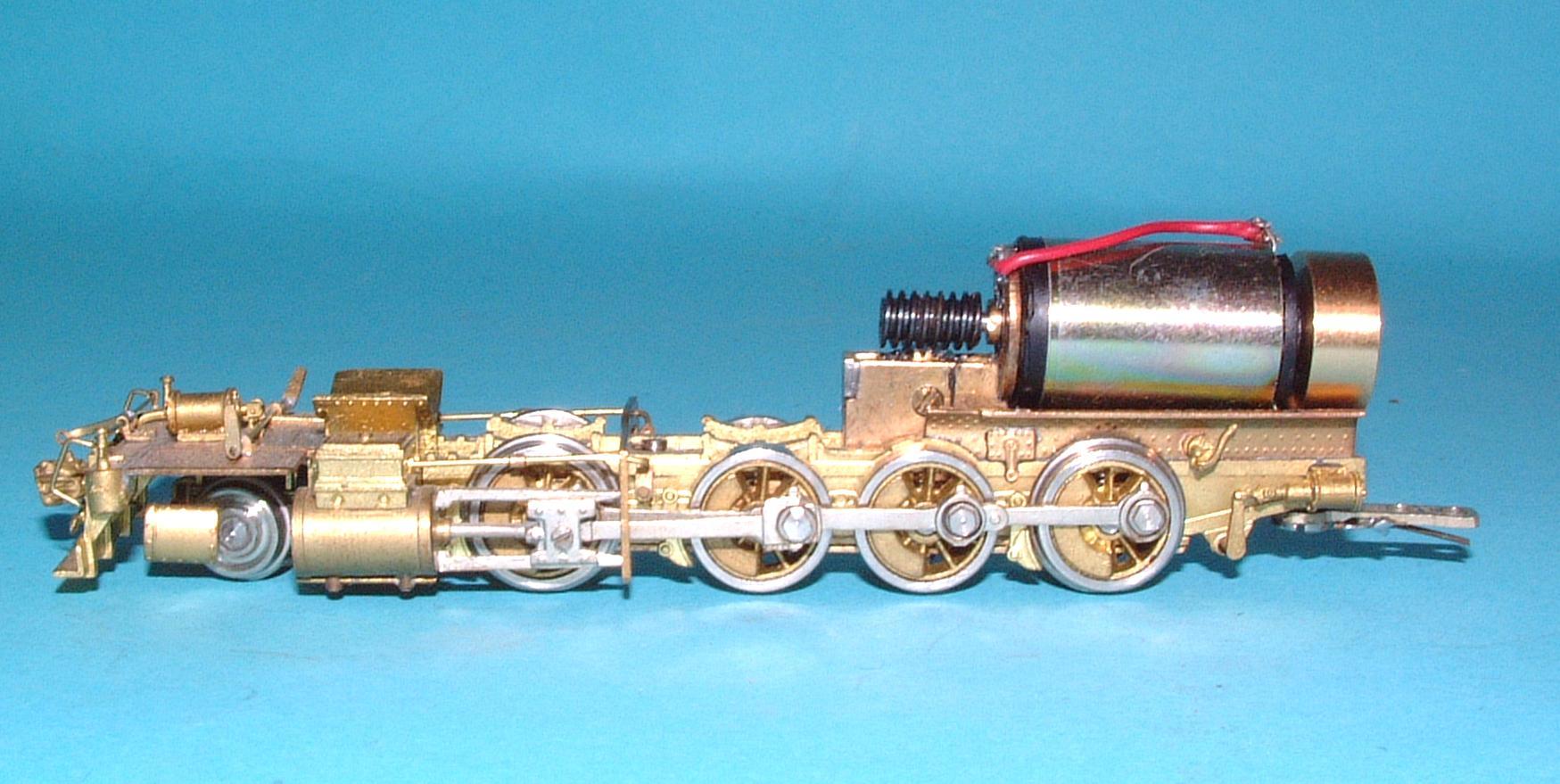

HOn3 Key D&RGW C 19 late run with an 1.5 watt micro motor, also a 30 minute conversion which results in a very smooth an silent
running engine (minimum speed 0.6 scale mph, top speed 33 scale mph)


above:

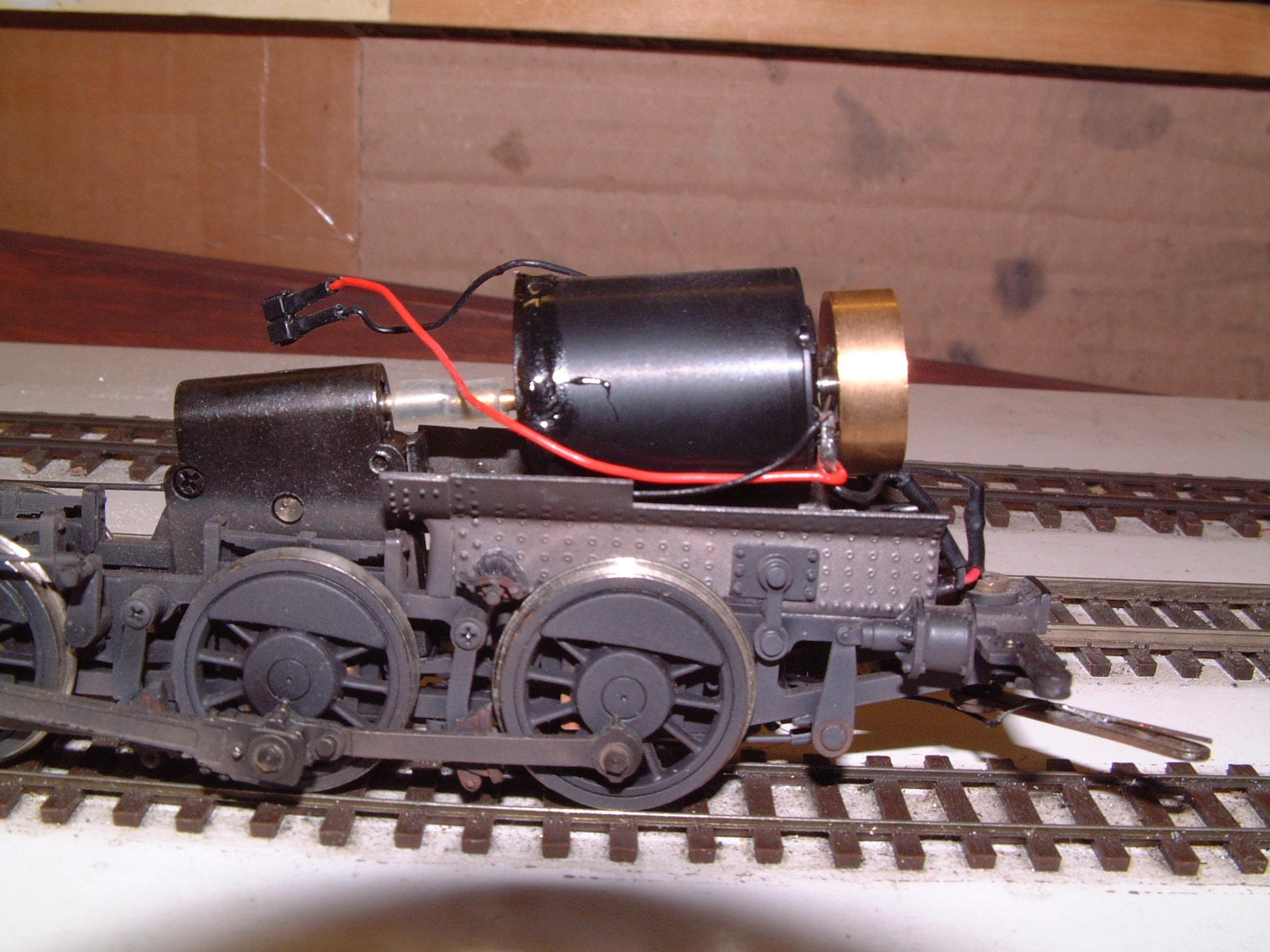

On3 BLW RGS T 19 # 20 - 25 with an 3,5 watt micro motor, also a 30 minute conversion which results in a very smooth an silent
running engine (minimum speed 0.5 scale mph, top speed 34 scale mph)
